| Polycrystalline Solar Modules |
|
ELECTRICAL CHARACTERISTICS |
| Model Number |
|
KM(P)200 |
| Maximum Power |
Pmax(W) |
200 |
| Power Tolerance |
% |
±5 |
| Maximum Power Voltage |
Vm(V) |
37V |
| Maximum Power Current |
Im(A) |
5.4A |
| Open Circuit Voltage |
Voc(V) |
45V |
| Short Circuit Current |
Isc(A) |
5.7A |
| Maximum System Voltage |
VDC |
1000V |
| Module Efficiency |
% |
14.5 |
| Cells per Module |
Pcs |
72 |
| Cell Type |
|
Polycrystalline silicon |
| Cell Size |
mm |
156 x 104 |
| Temperature coefficient of Isc
|
%/°C |
+0.05 |
| Temperature coefficient of Voc
|
%/°C |
-0.35 |
| Temperature coefficient of power
|
%/°C |
-0.47 |
| NOCT (Nominal operating cell temperature)
|
°C |
47 ± 2 |
| Operating Temperature |
°C |
-40 ~ +85 |
|

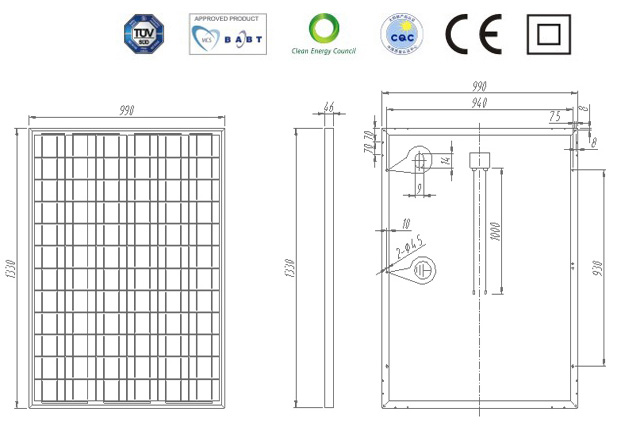

MECHANICAL CHARACTERISTICS |
| Dimensions |
mm |
1330 x 990 x 46 |
| Weight |
Kg |
16 |
| Type of Junction Box |
|
TUV certified,IP65 |
| Cable Type, Diameter |
|
TUV certified, 4mm2, 90cm in length |
| Connector |
|
Compatible to Type 4(MC4) |
| Tempered Glass |
|
3.2 mm, high transmission, low iron |
| *STC Conditions: Radiation of 1000W/m2,,
AM1.5 spectrum , cell temperature of 25°C. |
|
